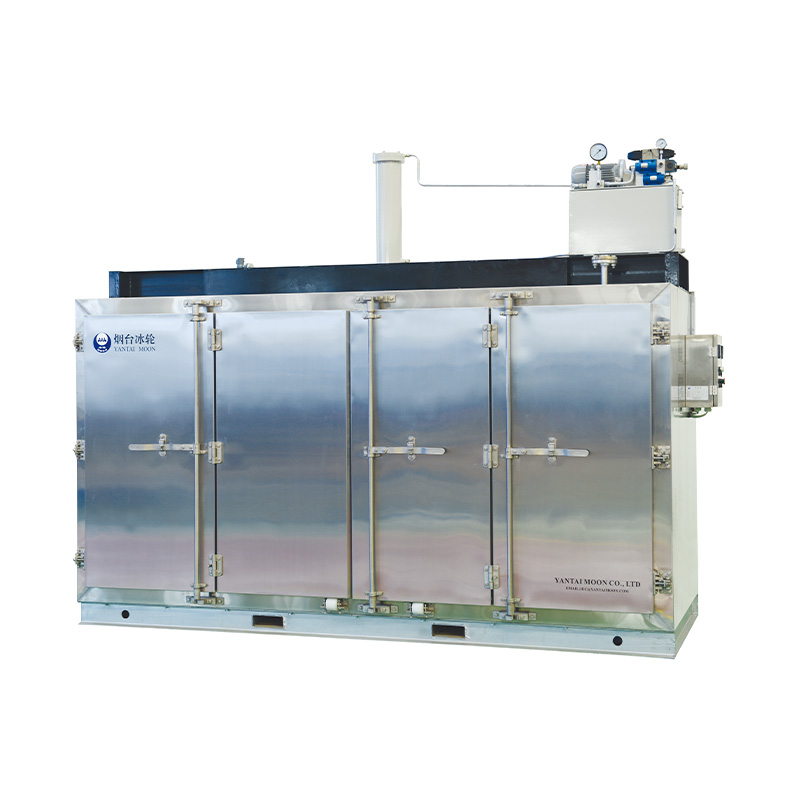

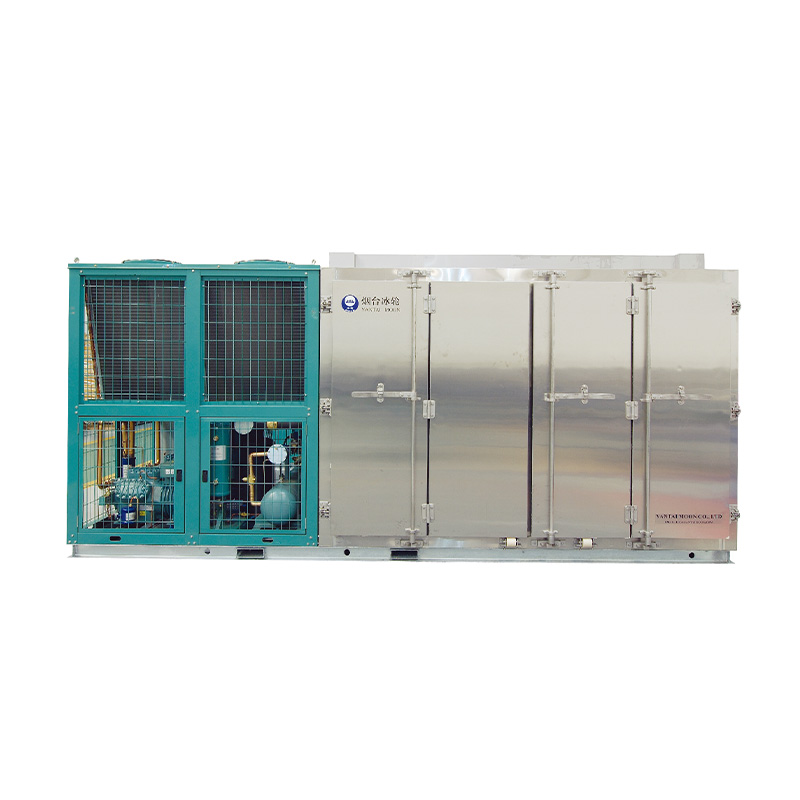

The plate freezer enables rapid freezing through double-sided contact between the food and metal plates. The metal plates function as evaporators, closely contacting both the upper and lower surfaces of the food, and directly transferring cold energy to it. As the thermal conductivity of metal is dozens of times higher than that of air-based heat exchange systems, this setup achieves highly efficient and rapid freezing.
Mainly used for freezing tray-packed block-type foods that are resistant to compression or easy to shape, such as portioned meat, poultry, and by-products.
Freezing capacity ranges from 960 to 2520 kg per batch, based on fish trays (dimensions: 600×400×80 mm, 15 kg/tray, with inlet/outlet temperatures of +20℃/-18℃).
The continuous freezing products of the ice wheel environment include four major series of products:
tunnel series quick-freezing devices, spiral series quick-freezing devices, fluidized quick-freezing devices, and intelligent tunnel quick-freezing devices. They share the following significant common features.
| 10 | ||||
| Effective spacing of
layers(mm) |
55~105 | |||
| Inlet & outlet cargo core temperatures(℃) | +20/-18 | |||
| Refrigerant | R717 | R22 | R717 | R22 |
| Refrigerant working conditions(℃ ) | ±35 | |||
| Liquid feed
interface(mm) |
Φ38 | 11/8in | Φ45 | 11/8in |
| Air return interface(mm) | Φ76 | Φ76 | Φ89 | Φ76 |
| Cooling consumption
(kw) |
26 | 33 | ||
| Nominal freezing capacity(kg/shift) | 960 | 1200 | ||
| Installed power(kW) | 1.5 | |||
| Weight (t) | 3.1 | 3.0 | 3.4 | 3.2 |
| Model | MPF1500 | MPF1800 | ||
| Outline
dimensionL*W*H(mm) |
3750*1680*3050 | 3550*1680*3050 | 3750*1680*3300 | 3550*1680*3300 |
| Freezing plate size(mm) | 2060*1261 | |||
| Effective layers of freezing plates | 10 | 12 | ||
| Effective spacing of
layers(mm) |
55~105 | |||
| Inlet & outlet cargo core temperatures(℃) | +20/-18 | |||
| Refrigerant | R717 | R22 | R717 | R22 |
| Refrigerant working conditions(℃ ) | ±35 | |||
| Liquid feed
interface(mm) |
Φ45 | 13/8in | Φ45 | 15/8in |
| Air return interface(mm) | Φ89 | Φ76 | Φ89 | Φ89 |
| Cooling consumption
(kw) |
41 | 49 | ||
| Nominal freezing capacity(kg/shift) | 1500 | 1800 | ||
| Installed power(kW) | 1.5 | |||
| Weight (t) | 3.7 | 3.6 | 4.0 | 3.8 |
Note: Freezing capacity is based on the tray of hairtail fish, with dimensions of 600*400*80mm, 15kg per tray.
