At MOON-TECH, we provide comprehensive, fully customized refrigeration and heating solutions designed to meet the specialized needs of diverse industries.

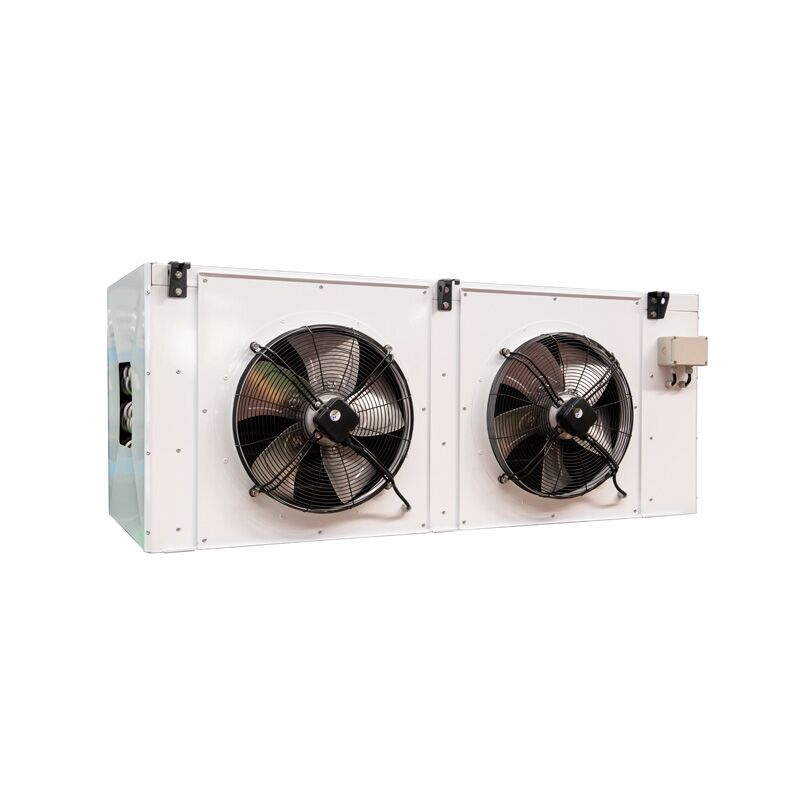

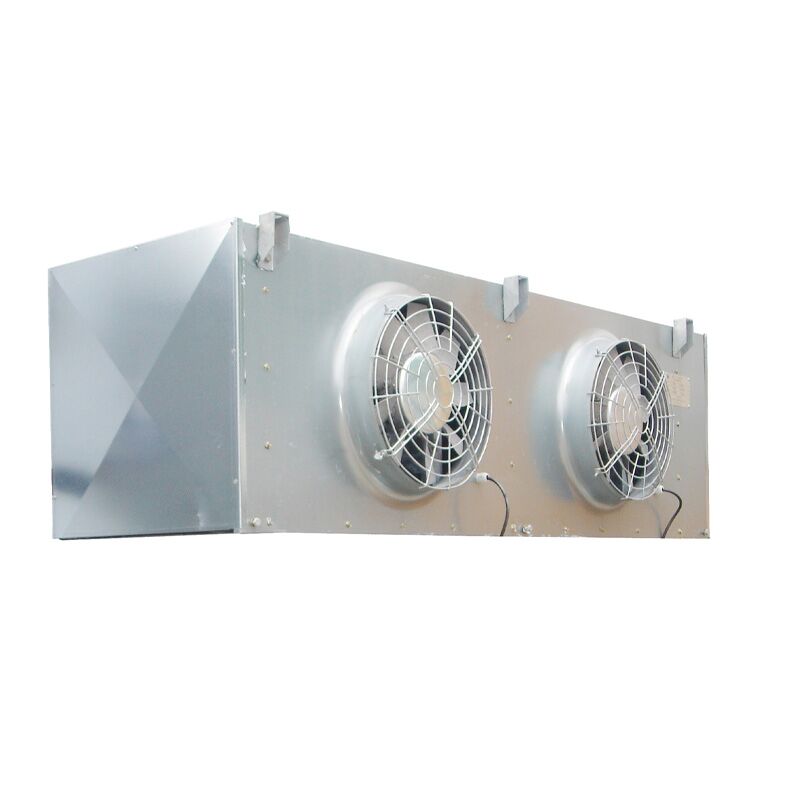

The air cooler serves as the evaporator in a refrigeration system and is a key heat exchange component used in logistics cold storage, cold chain vehicles, and workshop air-conditioning systems. It is available in various materials, including stainless steel tube with aluminum fins, aluminum tube with aluminum fins, copper tube with aluminum fins, and steel tube with steel fins.
Refrigerants: R717, R507, R744, etc.
Types: Ceiling-mounted air cooler, floor-standing air cooler, warehouse-type air cooler, etc.
Feeding Methods: Pump circulation, gravity feed, direct expansion
Heat Exchange Area: 110–715 m²/unit (customizable)
Materials:
Widely used across various segments of the food industry, including meat and poultry, dairy and eggs, seafood, fruits and vegetables, prepared foods, and frozen desserts, for low-temperature quick-freezing and cold storage.
Beyond the food industry, air coolers are also widely used in comfort air-conditioning systems (shopping malls, airports, rail transit systems, sports venues, etc.) and artificial intelligence environments (ice and snow sports venues, high-performance laboratories, etc.).
Selection Parameter Table and Standard Configuration
| Item | Optional List | Standard Configuration |
| Type | Ceiling-Mounted,Floor-Mounted | Ceiling-Mounted |
| Spec.and Material of Heat Exchange Tube/mm | 16X0.6/S30403 | 16X0.6/S30403 |
| 16X1.2/6063T4 | ||
| Fins | Aluminum Fin 8011/Hydrophilic Aluminum Foil P12-8011-0 | Aluminum Fin 8011 |
| Refrigerant | R717/R744/Ethylene Glycol | / |
| Material of Casing | Aluminizing Zinc Plate/Stainless Steel Plate | Aluminizing Zinc Plate |
| Fan Thermal Protection | With Thermal Protection | With Thermal Protection |
| Defrosting Method | Water/Hot Ammonia Defrosting/Water+Hot Ammonia Defrosting |
Water |
| Drip Tray | With Thermal Insulation/Without Thermal Insulation | Without Thermal Insulation |
| Water Baffle | With/Without | With |
| Electrical Heating of Refrigeration | With/Without | Without |
| Blowing Mode | Induced Air | Induced Air |
| Liquid Supply Mode | Pump Supply/Gravity Supply | Pump Supply |
| Flow Direction of Working Medium | Bottom in,Top out/Side in,Side out | Bottom in,Top out |
| Fan Type | Drum-Type/Mesh-Cover Type | Drum-Type |
| Liquid Supply Direction | Left/Right | Right |
| Tube Placing Pattern(mm) | 55X47.63 | 55X47.63 |
| Fin Spacing(mm) | 612/816 | / |
Note:It is recommended that the drip tray should be insulated when the defrosting method is”Hot Ammonia Defrosting.
