At MOON-TECH, we provide comprehensive, fully customized refrigeration and heating solutions designed to meet the specialized needs of diverse industries.
Various moisture-containing foods are processed according to their characteristics and then subjected to low-temperature, high-vacuum conditions. Under these conditions, the moisture in the pre-frozen foods sublimates directly from ice to water vapor without melting, thereby dehydrating and drying the food. The food retains its original color, aroma, flavor, nutritional content, and appearance, and exhibits excellent rehydration properties, making it an ideal natural and hygienic food product.
Widely used in the production and processing of dried vegetables and fruits, dried meats, ready-to-eat seafood snacks, pet foods, and other products.
Technical Parameter Table
| Item\Model | MTFD0.2-5L | MTFD2.2-50L | MTFD15-180L | MTFD25-300L | |
| Water Loading Capacity
(L/shift) |
5 | 50 | 180 | 300 | |
| Standard Feed Capacity
(kg/shift) |
2.5 | 30 | 200 | 320 | |
|
Lyophilizer Assembly |
Material | SUS304,Passivation Treatment of Inner and Outer Surface | |||
| Outside Dimension
(mm) |
1000×1000×1400 | 3000×2000×2100 | 4000×1800×2400 | φ2200×7500 | |
| ChamberDoor | Square,Single Open | Circular Shape,Single Open | Square,Single Open | Circular Shape,Single Open | |
| Cold trapType | Underside Mounted Type | Rear Mounted Type | |||
| Refrigeration Type | Direct Expansion Feed,Refrigerant:R404A/R507A | ||||
| Evaporative Temp | ≤-50℃ | ≤-70℃ | |||
|
Shelf/Tray |
No.of Product Shelf | 3 | 7 | 14 | 11 |
| Total Shelf Area | 0.2m² | 2.2m² | 15m² | 25m² | |
|
Heat Transfer Mode |
Electric Heating | Circulation Radiation
Heating,Heat Exchange for Electric Heating Pipe |
Tray Contact Heating,
Heat Exchange for Silicone Oil |
||
| Regulating
Temperature Range of The Shelves |
Room Temperature~+100℃ |
-60℃~+100℃ |
|||
| Tray Size(mm) | 360×280×32 | 680×550×32 | 680×550×35 | 700×600×35 | |
| QTY ofTray | 2 | 6 | 40 | 120 | |
| Loading Type | Manual Loading and Unloading | ||||
|
Vacuum System |
Static limit Vacuum for Each One |
13Pa |
|||
| Working Pressure in
Bin |
30~133Pa | ||||
|
Control |
Control Cabinet | All in One,PLC Control | |||
| Temperature | Programming Control | ||||
| Vacuum | Vacuum Gauge Control | ||||
| Voltage | AC/220V/50HZ | AC/380V/50HZ | |||
Technical Parameter Table
| Item\Model | MTFD25-300L | MTFD50-600L | MTFD100-1200L | MTFD120-1500L | MTFD200-2500 | L|MTFD240-3000L | |
| Water Loading Capacity
(L/shift) |
300 | 600 | 1200 | 1500 | 2500 | 3000 | |
| Standard Feed Capacity
(kg/shift) |
320 | 640 | 1280 | 1520 | 2660 | 3200 | |
|
Lyophilizer Assembly |
Material | SS400,Metal S | pray on Inner Surface and Paint on Outer Surface/SUS304,Passivation Treatment of lnner and Outer Surface | ||||
| Outside Dimension
(mm) |
φ1800×6800 | φ2300×6900 | φ2300×9600 φ2500×11000 | φ2500×11700 φ2500×12850 φ2500×7100 φ2500×7600 | |||

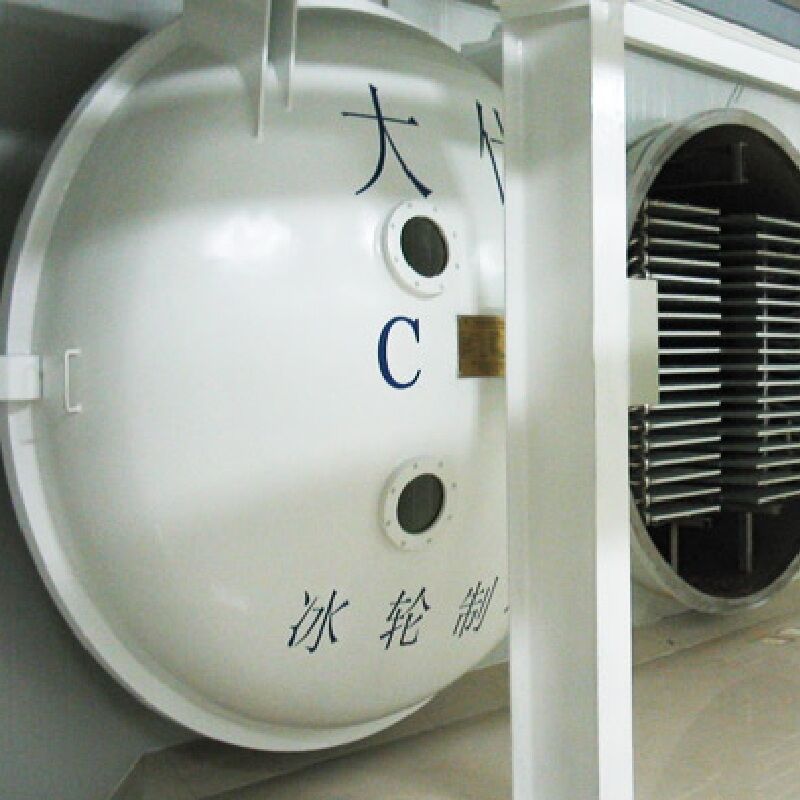

| ChamberDoor | Circular Shape,Single Open | ||||||
| Cold trapType | Rear Mounted Type | Rear Mounted Type/Side Mounted Type | |||||
| Refrigeration Type | Direct Expansion Feed/Ppump Feed,Refrigerant:R507A CO₂/R717 | ||||||
| Evaporative Temp | ≤-40℃ | ||||||
|
Shelf/Tray |
No.of Product Shelf | 11 | 17 | 17 | 20 | 20 | 21 |
| Total Shelf Area | 25m² | 50m² | 100m² | 120m² | 200m² | 240m² | |
| Heat Transfer Mode | Circulation Radiation Heating,Heat Exchange for 0.5MPa Saturated Steam | ||||||
| Regulating
Temperature Range of The Shelves |
Room Temperature~+120℃ |
||||||
| Tray Size(mm) | 415×515×32 | 680×550×32 | 680×550×32 | 680×550×32 | 680×550×32 | 680×550×32 | |
| QTY of Tray | 120 | 128 | 256 | 304 | 532 | 640 | |

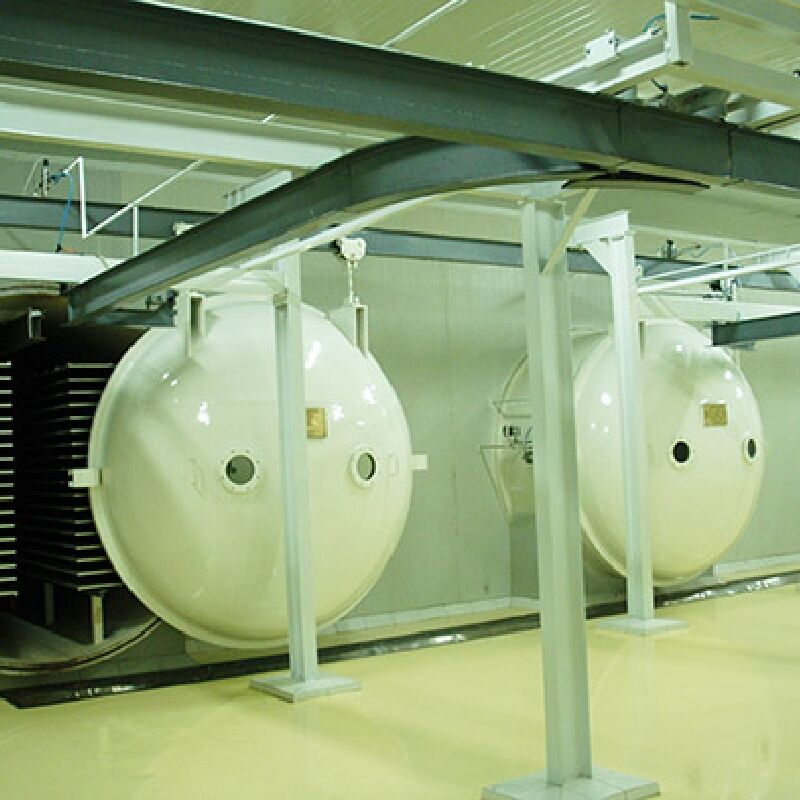

| Loading Type | Suspension Rail Type | ||||||
|
Vacuum System |
Static limit Vacuum for Each One | 13Pa | |||||
| Working Pressure in
Bin |
30~133Pa | ||||||
|
Control |
Control Cabinet | Split Type,PLC Control | |||||
| Temperature | Temperature Controller Control | ||||||
| Vacuum | Vacuum Gauge Control | ||||||
| Voltage | AC/380V/50HZ | ||||||
