Condenser Type: Shell-and-tube water-cooled, plate heat exchanger condenser, evaporative condenser
Evaporator Type: Flooded type
Refrigerant: R134a, R507, etc.
Outlet Water Temperature: -5—-35℃
Secondary Coolant: Ethylene glycol solution, calcium chloride solution, etc.
Compressor Type: Open-type single-stage, open-type single-unit two-stage, open-type dual-unit two-stage, semi-hermetic series compressors
The compressors in the YS series low-temperature brine chillers adopt the new high-efficiency LG series screw compressors, featuring low noise and high reliability.
The condenser is a water-cooled shell-and-tube type with high-efficiency heat exchange tubes, compact in size and lightweight.
The evaporator adopts a flooded-type structure.
Oil return system uses ejector oil return, which is simple and reliable to operate.
The oil cooler adopts liquid-cooled or water-cooled oil cooling, providing good heat exchange performance and reliable operation.
The unit’s liquid level control adopts the internationally advanced PMFL+SV system, which enables continuous automatic adjustment with high reliability.
Small units are skid-integrated; large units are skid-mounted and assembled on-site, offering convenience and efficiency.
The entire unit operates smoothly, with low vibration, and ensures safety and reliability.

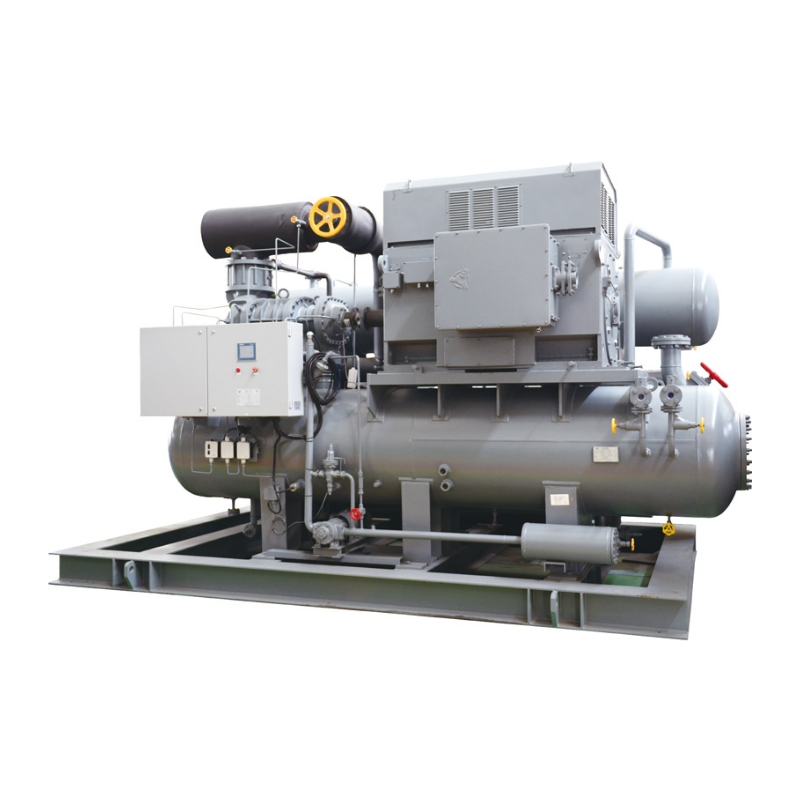

The YS series flooded-type low-temperature brine chillers use the new LG high-efficiency screw compressors as the core unit. R22 is the primary refrigerant, but R134a, R404a, R507, and other refrigerants are also available.
Secondary coolants can include ethylene glycol, calcium chloride, methanol, propylene glycol, sodium chloride, and other solutions.
The units provide low-temperature brine for process cooling in industries such as chemical, pharmaceutical, and food processing.
| Item | Unit | YS12MZMSA(B) | YS16MZMSA(B) | YS20MZMSA(B) | |
| Refrigeration capacity | kw | 168.2 | 367 | 704.4 | |
| Chilled water varieties | Ethylene glycol water solution and calcium chloride water solution | ||||
| Capacity control range | % | 15 ～ 100 | |||
| Refrigerant | Varieties | R22 | |||
| Charge | kg | ~ 200/200 | ~ 330/330 | ~ 600/530 | |
| Standard | GB7373 Industrial CHClF2 (F22) | ||||
| Refrigerant
oil |
Brand | M-K4001 | |||
| Charge | l | ~ 110 | ~ 160 | ~ 370 | |
| Standard | Q/YB00J08.21.1“Frozen oil (Mineral type) ” | ||||
| Compressor model | LG12M | LG16M | LG20M | ||
| Rated power of motor | kw | 65 | 132 | 250 | |
| Electrical system | 3P 380V 50HZ | ||||
| Condenser | Type | Shell-tube | |||
| Water inlet temperature | ℃ | 30 | |||
| Cooling water circulation
volume |
m3/h | 40 | 85 | 155 | |
| Cooling water inlet and
outlet pipe diameter |
mm |
DN80 |
DN125 |
DN150 |
|
| Cooling water-side design pressure |
MPa |
0.6 | |||
| Item | Unit | YS12MZMSA(B) | YS16MZMSA(B) | YS20MZMSA(B) | |
|
Evaporator |
Type | Flooded type | |||
| Output water
temperature |
℃ | -5 | |||
| Chilled water circulation
volume |
|
35/36 | 70/75 | 135/140 | |
| Drift diameter of chilled water inlet and outlet |
mm |
DN80 |
DN125 |
DN150 |
|
| Chilled water side design pressure |
MPa |
0.6 | |||
| Fouling factor of chilled water and cooling
water |
m2.k/kw | 0.086 | |||
| Resistance of condenser and evaporator
on water path |
MPa |
≤0.1 | |||
| Cooling water quality standard | GB50050 Code for Design of Industrial Recirculating Cooling Water Treatment | ||||
| Outline dimension (L* W* H) | mm | ~ 3049*1886*1912 | ~ 3178*2265*2217 | ~ 3836*2435*2398/
~ 3763*2374*2302 |
|
| Net weight | kg | ~ 3750 | ~ 5000 | ~ 7000 | |
Note:
Inlet temperature and the water outlet temperature is 5 “℃ ;the chilled water outlet temperature is -5 “℃ and the difference between the water inlet temperature and the water outlet temperature is5c .
②The secondary refrigerant flow rate in the table is calculated according to35%mass concentration of ethylene glycol water solution and20.9%mass concentration of calcium chloride water solution.
③ In ca seof using other secondary refrigerants, the circulation volume of chilled water shal lbe re-calculated according to its physical property parameters.
④In the above tables, the item before/denotes an ethylene glycol unit and the item after/denotes a calcium chloride unit.
