A poultry plant can own good refrigeration equipment and still struggle with uneven carcass temperatures, long waiting times, high power use, and frozen products entering storage too warm. The trouble usually starts when precooling, packaging, quick freezing, and cold storage are planned as separate sections. One weak link slows the whole line.
Founded in 1956 and now celebrating its 70th anniversary, MOON-TECH has built long experience in industrial refrigeration, food cooling, engineering design, and turnkey delivery. Its work covers core equipment, system integration, installation, commissioning, and later service. The company’s Poultry Processing solution connects red water chilling, refrigeration, frozen storage, quick-freezing rooms, heat recovery, and controls around the real production flow. For a buyer, that is more useful than collecting separate machine quotations and trying to make them fit afterward.
What Should an Integrated Poultry Cooling Solution Cover?

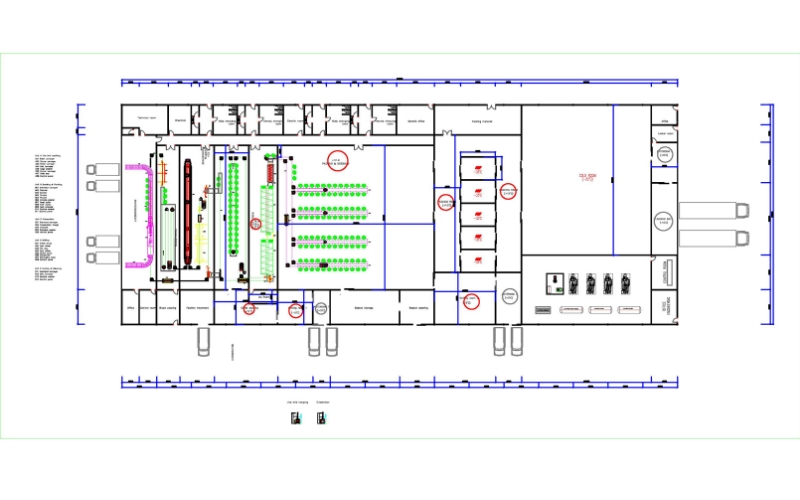

An integrated design should follow the bird from slaughter to dispatch. You need to know where product heat enters the line, where temperatures may rise again, and how long products wait between stages. Daily output matters, but hourly peaks usually decide whether the system works well on a busy shift.
Slaughter-to-Storage Temperature Mapping
The usual processing route includes slaughtering, scalding, defeathering, washing, evisceration, precooling, grading, packaging, freezing, and storage. Each transfer adds time. Recording the product temperature before and after every major step makes hidden delays easier to spot.
Peak Throughput and Cooling Load Matching
Do not size the plant only from average daily output. A line may process far more birds during several busy hours. The red water system, packaging room, freezing room, and cold store must accept that peak flow without building a queue.
Coordinated Precooling, Freezing, and Storage Capacity
The three stages should run at a similar production pace. An oversized cold store cannot correct slow precooling. A large freezer also brings little value when packaged product waits too long before loading. Capacity balance sounds basic, yet it is often where projects go wrong.
Red Water Chilling System Design
Precooling is the first major temperature-control step after slaughter. Product temperature should fall quickly, but water flow, cleanliness, and residence time must remain steady. Fast cooling alone is not enough. The result should also be repeatable across the first and last batch of the shift.
Rapid Carcass Temperature Pull-Down

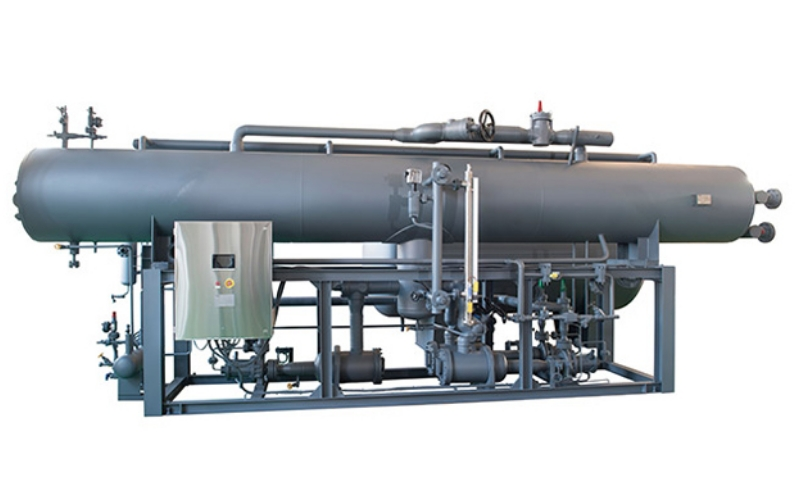

The target is commonly 4°C or below after precooling, while some processors work toward 2°C or below. A properly selected Red Water Unit System removes heat quickly and gives the following refrigeration stages a more stable starting point.
Red Water Temperature and Flow Stability
Water temperature should stay stable as production rises. Flow also matters because uneven circulation gives different cooling results across the chiller. Compared with the traditional flake ice and cold water method, the official system data reports about 25% to 35% lower power use. That saving depends on correct sizing and operation, not the machine name alone.
Water Circulation and Hygiene Control
The circulation loop should allow cleaning, drainage, filtration, and routine inspection. Product residue left in corners becomes a daily operating problem. Pipe routing and access points are not exciting subjects, but maintenance crews notice them very quickly once production starts.
Cold Storage and Quick-Freezing Integration
After precooling, products may move to grading, packing, chilled holding, or freezing. The route depends on whether you sell fresh chilled poultry, frozen whole birds, portions, or further-processed items. Each route needs its own temperature and holding-time control.
Chilled Holding and Packaging Zones
Packaging rooms and temporary holding areas should not become warm gaps between processes. Door traffic, staff movement, washing, and packaging machinery all add heat. The cooling design should consider these real loads rather than treating the room as an empty insulated box.
CO₂ Refrigeration for Low-Temperature Loads
A CO₂ refrigeration system can serve freezing rooms, individual freezing equipment, and low-temperature storage when the project conditions suit it. Refrigerant selection should still consider ambient temperature, system scale, safety management, local service skills, and daily operation.
Quick-Freezing Room and Cold Storage Coordination
Packaged products should enter the freezing room without a long delay, then remain there until the required core temperature is reached. Storage rooms are meant to hold frozen products, not finish an incomplete freezing process.
One overseas poultry facility, for example, combined 2,600 tons of low-temperature storage with 1,000 tons of higher-temperature cold rooms. Another project used two processing lines rated at 10,000 and 6,000 birds per hour. These cases show why room capacity and line capacity must be checked together. The poultry processing case library contains further project references without turning the design into a standard package.
Refrigeration and Heat Recovery Configuration
A poultry plant needs cooling, but it also uses hot water for floor cleaning, washing, and process duties. Treating cooling and heating as unrelated systems wastes a useful energy source. Condensing heat can often be recovered instead of being rejected outside.
Screw Compressor Capacity Regulation
Poultry production does not hold one load all day. Screw refrigeration compressor units can regulate capacity from 10% to 100%, while frequency control can follow part-load operation. The available automatic system also supports PID adjustment, trend data, stored alarms, and remote communication.
Condensation Heat Recovery for Low-Temperature Hot Water
Simple condensation heat recovery can provide hot water in the 30°C to 60°C range. This temperature level can support floor cleaning, hand washing, and shower use, reducing the load on a separate heating source.
High-Temperature Heat Pump for Process Hot Water
Where the plant needs hotter water, sensible heat recovery can be combined with a high-temperature heat pump. The poultry solution data gives a 60°C to 90°C water range for process or other plant use. The heat source and water demand should overlap in time, otherwise storage may be needed.
Plantwide Control and Lifecycle Planning
Good controls do not need to look complicated. Operators mainly need clear temperatures, pressures, alarms, and equipment status. They also need to know what happened before a fault, not only see a red light after it occurs.
Part-Load and Defrost Management
Compressor loading should follow real demand from precooling, packaging rooms, freezing equipment, and storage. Defrost timing also needs care. Too little defrost reduces heat transfer, while too much adds unwanted heat and raises power use.
Remote Monitoring and Alarm Records
The compressor control platform can store operating data and historical alarms, display changing trends, and reserve Modbus RTU/RS485 communication for remote monitoring. These details help maintenance teams trace recurring faults rather than resetting the same alarm every week.
Maintenance Access and Future Expansion
Leave enough space around compressors, oil filters, pumps, valves, heat exchangers, and control panels. Future line expansion should also be discussed early. Spare electrical capacity, pipe connections, and control points cost less during the first build than during a later shutdown.
Build Your Poultry Processing Solution with Full-Service Support
A full project starts before equipment selection. You need process data, utility conditions, civil layout, local climate, production shifts, cleaning demand, and future output plans. The clearer this information is, the fewer surprises appear after installation.
Full-Process Consultation and System Design
Through full-process consultation, you can cover feasibility work, planning, preliminary design, construction drawings, budgets, engineering management, equipment installation, commissioning, and refrigeration contracting under one coordinated route.
Whole-Industry-Chain Equipment Integration
Whole-industry-chain coordination links poultry slaughter, processing rooms, refrigeration equipment, freezing, storage, and building services. This reduces the risk of separate suppliers using different design assumptions for the same production line.
Installation, Commissioning, and Lifecycle Service
The available full lifecycle service covers technical consulting, planning, system design, equipment supply, installation, commissioning, training, maintenance, and later upgrades. Before opening a project discussion, prepare hourly processing capacity, incoming product temperature, final temperature targets, storage volume, power supply, water conditions, and expected expansion. Those numbers give engineers something useful to work with.
FAQ
Q1: What Is the Main Purpose of Red Water Chilling in Poultry Processing?
A1: Red water chilling removes body heat soon after slaughter and helps reduce carcass temperature to 4°C or below before grading, packaging, freezing, or storage.
Q2: How Much Power Can a Red Water Unit System Save?
A2: The official solution data reports about 25% to 35% lower power use compared with the traditional flake ice and cold water method, although the actual result depends on design and operating conditions.
Q3: Can One Refrigeration System Serve Precooling, Quick Freezing, and Cold Storage?
A3: Yes, but each area has a different temperature level and load pattern, so compressor capacity, piping, controls, and defrost schedules must be matched carefully.
Q4: Why Should a Poultry Plant Recover Condensing Heat?
A4: Recovered heat can provide 30°C to 60°C water directly or support 60°C to 90°C hot water production through a high-temperature heat pump, reducing separate heating demand.
Q5: What Information Should You Provide Before Requesting a Poultry Refrigeration Proposal?
A5: You should provide hourly throughput, product type, incoming and target temperatures, operating hours, cold room capacity, freezing demand, utility data, local climate, cleaning needs, and future expansion plans.
