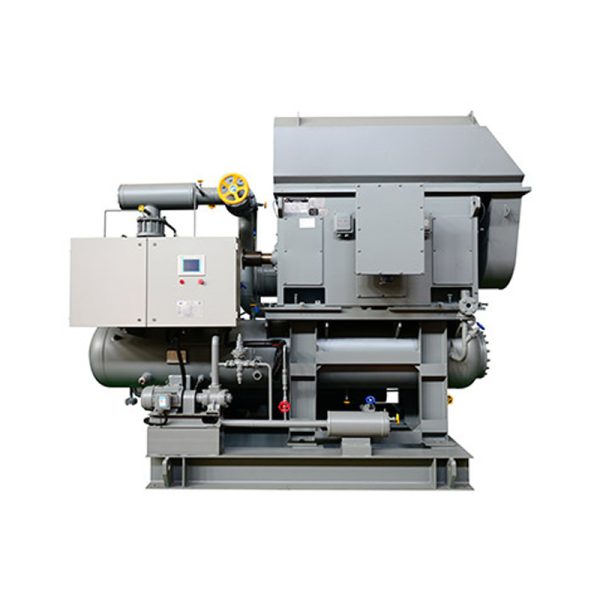

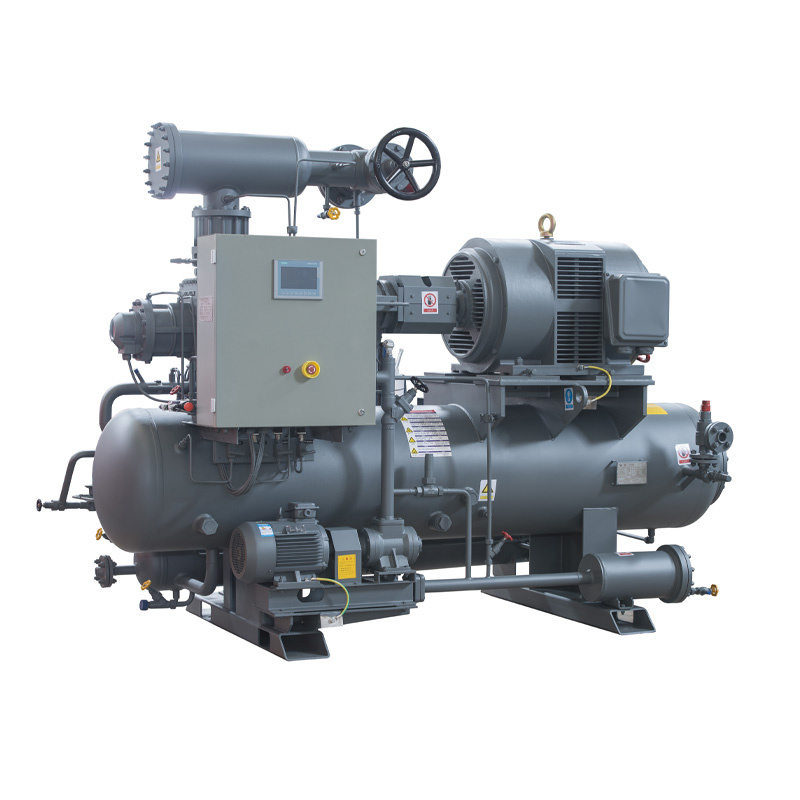

Model: LG12M—LG50L Series
Over 20 models available with different lead screw pitches
Displacement Range: 285 to 14,000 m³/h
Refrigerants: R717 (Ammonia), R507A, R404A, etc.
Control Modes: Automatic, Manual, Semi-automatic
Nominal Cooling Capacity:
High-Temperature Conditions (+40°C condensing / +5°C evaporating): 316 / 239 kW to 15,523 / 11,740 kW
Medium-Temperature Conditions (+40°C / -10°C): 175 / 161 kW to 8,597 / 7,910 kW
Low-Temperature Conditions (+40°C / -35°C): 62 / 63 kW to 3,046 / 3,095 kW
Full product range with displacement from 285 m³/h to 14,000 m³/h
Wide application range, suitable for high, medium, and low-temperature refrigeration
Compatible with various refrigerants including R717, R507A, and R404A
Customizable configuration available upon request to meet specific user requirements
Standard control mode is automatic
This series is widely used in industries requiring artificial low-temperature environments, including food freezing and cold storage, chemical process cooling, gas compression and liquefaction, construction aggregate cooling, scientific temperature control, permafrost drilling, sports venue refrigeration, and underground mine heat management.
| ltem | Unit | Series 12M | Series 16S | Series 16M | Series 20S | ||
| Refrigerant | Category | R717/R507A | |||||
| Theoretical Displacement of Compressor | m³/h | 285 | 385 | 598 | 806 | ||
|
Refrigerating Capacity |
High Temperature
Conditions |
kW | 316/239 | 440/333 | 692/526 | 1001/711 | |
| Moderate Temperature Conditions | kW | 175/161 | 244/224 | 384/355 | 555/480 | ||
| Low Temperature Conditions | kW | 62/63 | 88/89 | 138/141 | 201/194 | ||
|
Motor Rated Power |
High Temperature
Conditions |
kW | 65/75 | 90/110 | 132/160 | 185/220 | |
| Moderate Temperature Conditions | kW | 65/75 | 90/110 | 132/160 | 185/220 | ||
| Low Temperature Conditions | kW | 55/65 | 75/90 | 110/132 | 160/185 | ||
| Electrical System | 3P 50HZ 380V | ||||||
| Rated Speed | r/min | 2960 | |||||
| Charging Volume of Refrigeration Oil | L | ~160 | ~240 | ~380 | |||
| Inlet and Outlet Pipe Diameter | mm | DN80/DN65 | DN125/DN80 | DN150/DN100 | |||
| Inlet and Outlet Pipe Diameter of Economizer | mm | DN50 | DN50 | DN50 | DN65 | ||
| SafetyValve Diameter | mm | DN20 | DN25 | DN32 | |||
|
Oil Cooler |
Type | Shell and Tube | |||||
|
Water Cooling |
Inlet and Outlet Pipe
Diameter |
mm | DN32 | DN40 | DN65 | ||
| Cooling Water Flow | m³/h | ~10 | ~15 | ~15 | ~20 | ||
| Water Quality Standard | GB50050″Code for Design oflndustrial Recirculating Cooling Water
Treatment” |
||||||
|
Liquid Cooling |
Liquid Inlet Pipe Diameter | mm | DN25 | DN32 | DN40 | ||
| Discharge Pipe Diameter | mm | DN40 | DN50 | DN65 | |||
|
Oil Pump |
Model | ZHB80P6 | ZHB125P4 | ZHB125P4 or ZHB150P6* | |||
| Motor Power | kW | 1.5 | 2.2 | 2.2or 3* | |||
| Dimensions (L*W*H) | mm | 2620X1370x1780 | 3060X1470x2030 | 3180X1640x2260 | |||
| NetWeight of Unit | kg | ~2000 | ~2450 ～2750 | ~4450 | |||
Note :
1.High temperature working condition is +40/+5℃,moderate temperature working condition is+40/-10°℃,low temperature working condition is+40/- 35℃;the corresponding high temperature working condition of R507A is+40/+0℃;
With economizer,the liquid outlet temperature is 5℃higher than the saturation temperature of the air make-up pressure.The coling water inlet temperature of the oil cooler is+33℃,and the temperature difference between the inlet and outlet water is 5℃ .
2.*For series LG20S,the motor power is 3kW when used in R507A.
